We are the suppliers of Coconut Tree Climber machine in Jaysingpur. We have our manufacturing unit and we can provide the standing model type climber Machine.
Our Climbers can bear a 500 Kg weight capacity and can be used in Coconut trees.
The design is developed and approved by the Government of India
How to use the coconut tree climbing machine?

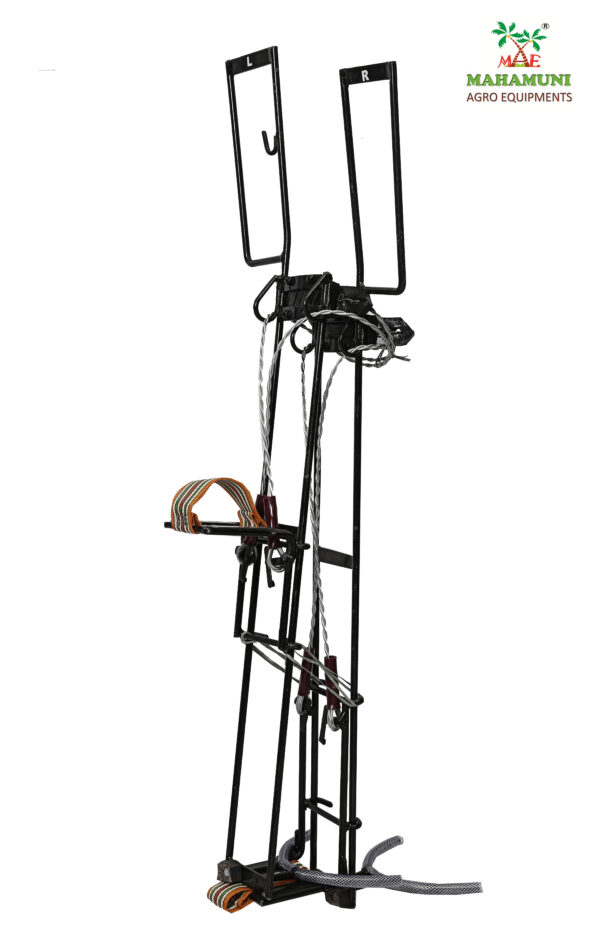

The ladder has two parts for the (L) left and (R) right legs. First of all the semi-circular bond of the rubber cross is fitted around the trunk along with the wire rope and after interlocking. It is locked into the hook of the pedal. This will have a very secure grip of the left leg

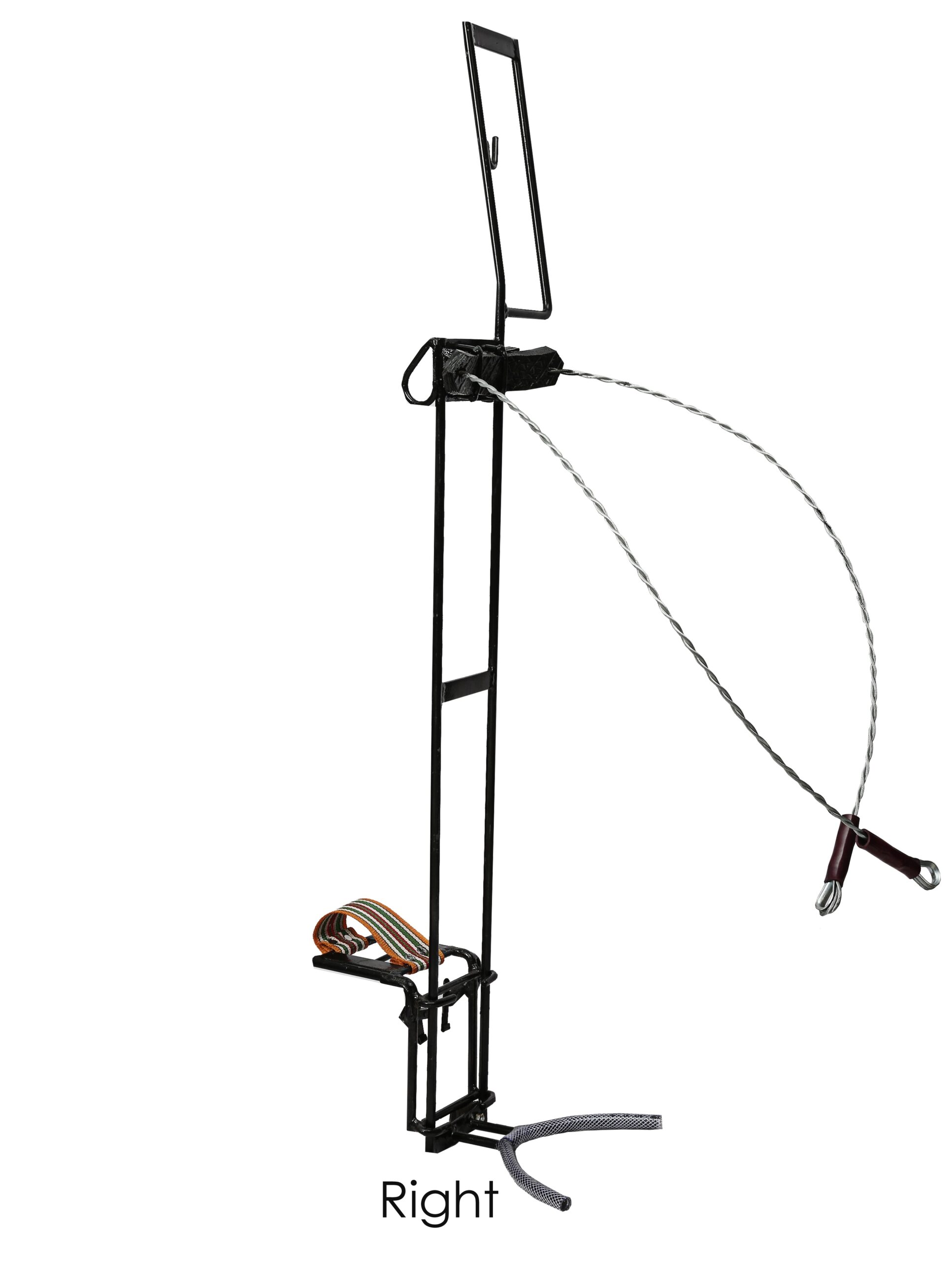

climber on the trunk. Now repeat the same procedure as above for the right leg ladder at a distance of 8 to 10 inches between the right and the left. Now insert your foot into the right pedal and the left leg into your left pedal. This would mean that your left and right ladders are ready to climb on. After this make use of the safety belt, which is exactly like our waist belt. Rotate the D-shaped part to your front and fix the crane-type hook of the safety belt to the ladder with the right hand to the side of the right handle. First, put pressure on the left leg and raise the right pedal (above 10 to 12 inches difference between both) Next put your pressure on the right pedal and raise the left pedal high up. (The pedal that bears weight is fully secured and its grip is very tight) In a similar pattern climb to the top. Once you reach the top, fix the crane-type hook passing it once circularly & looking at D type hook. The coconut plucking will be highly secured with both your hands free to do any work like plucking coconuts, cleaning the tree, etc. You could sit or stand fully secured on the tree without any fear. While getting down loosen the left pedal and by taking a little distance (10” to 12”) put a little pressure. This will secure the grip on it. Follow a similar procedure on the right pedal in the same you will easily descend to the ground.
Advantages:
1) This equipment is fully secured.
2) The climber feels secure and comfortable in any season.
Instructions:
Before using the coconut plucking ladder practice climbing it 5 to 6 times at a height of 8 to 10 feet from the ground.
